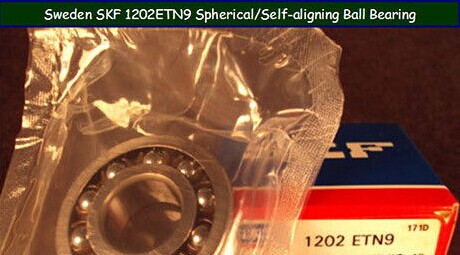

Swden SKF 1202ETN9 Spherical Ball Bearing , Self-aligning Bearings

Quick Detail:

Type: Ball

Brand: SKF

Model Number:1202ETN9

Seal Type:None

Number of Row: Double Row

Precision Rating:ABEC-5(P5)

Dimension(d*D*b):15*35*11mm

Weight:0.049kg

Description:

1. Features of SKF 1202ETN9 Spherical /Self-aligning Ball Bearing

1)The outer ring raceway is for spherical surface, and it has the self-aligning properties.

2) When the shaft and the hole is for decentraction caused by processing installation and shaft bending ,is suitable to use this type of bearing. The oblique angle can be adjusted within 3 °.

3) The bearing contact Angle is small, under the action of axial force is almost the same, and the axial bearing capacity is small.

4) This type bearing mainly bear the radial load,  at the same time, also can bear a small amount of axial load, and the limit speed is lower than deep groove ball bearings.

2. Applications

Woodworking machinery, textile machinery transmission shaft, vertical arrange ushering self-aligning bearing, precision instruments, low-noise motors, automobiles, motorcycles, rolling mills, etc

3. Company Introduction

1) Enterprise group combines industry with International trade

2) 10Th Year Experience in International Trade

3) Strict quality control system with perfect facilities

4) Advanced production facilities

5) The abundant capability of R&D

6) High and New Tech enterprise, low carbon omission and environment friendly.

4. Main Brand and Products:

1) SKF / FAG/ INA/ TIMKEN / NSK / KOYO / NTN / NACHI / IKO/ RHP/ ASAHI/ IZWZ / HRB / LYC / ABT

2)Deep Groove Ball Bearing / Angular Contact Ball Bearing/  Taper Roller Bearing  /   Spherical Roller

Bearing   /   Cylindrical Roller Bearing / Thrust Ball Bearing   /  Thrust Roller Bearing /   Pillow Block

Bearing /   Needle Roller Bearing /  Tracking Roller Bearing   /   Auto Bearing   /   Withdrawal Sleeves

Bushings  Etc.

Specifications:
